Comparison of Three
Aluminum Box Trays / Chalk Trays
for Flush Wall Mounting

IND-4 Tray

MACT1-1

439 Tray

Home Extrusion Index

All Extrusions    Blade Trays


Pieces over 8' 2" must ship via truck
Lit Prices Below - Packaging charge will apply- ask for quote
Series IND-4 is the best
Manufacturers, contractors and dealers call for discount!
** shipping of 8 ft pieces will incur UPS oversize charges - discuss with Jen x 116 **

Box Trays

IND-4 A
Inventory

439 E MTM-0? R
  Pricing date 11/19/2018 will change soon
Base price per ft $6.20 $5.94 $11.45
Lengths stocked 8',  12' , 16' 24'4" 4' , 8'  12'
minimum order 8' 24'4" 4'
Cut charge for only 8' & 12' $4.80
End Caps that fit box trays
     Plastic Met02 Grey only  (r) Yes No Yes $14.75 Set
     Small Cast Met-03-01  (r) Yes No Yes $32.60 set
     Large Cast End-Cap  (e) Yes Yes NO $23.50Set

FOB Point Ohio - A Ohio -E Pennsylvania -R
Mounting Clips every 18"
***Needed to mount
Clip-439 E
order separately
$.60 each
Clip-439 E
order separately
$.60 each
MTYCL
clips included
extras at $.62 each
Wt per ft .753 lbs .753 lbs .753 lbs
Availability Extensive Extensive Extensive
H-Bars from this location
use to save freight
IND-6 #489-E MTM-0?

lengths of pieces are +/- 1./8"     All trays need rivets or screws to hold in place see End cap mount

Kits of IND-4 w/plastic end cap see Kits

Large Cast End Cap - light Grey
Medium Price $23.50 set
Only fits on 439 tray
Most Common
worst looking needs Rivets
1-3/4" wide
1.5 lbs per set

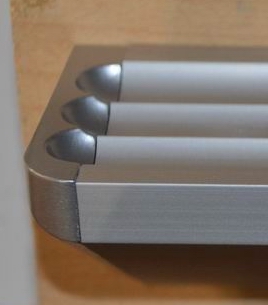

Small Cast End Cap MET03
Highest Price $32.60
Only fits on Ind-4 & MACT-1 tray
Good looking
1/2" wide
4 oz. per set

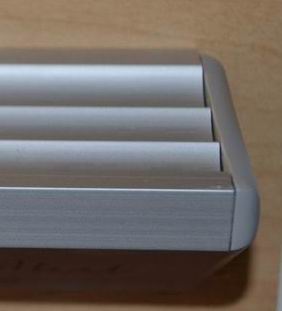

Plastic End Cap MET02
Lowest Price $14.75
Only fits on Ind-4 & MACT-1 tray
Best Looking
1/4" wide
1.5 oz. per set




439 on left ind-4 on right Mact1-1 not shown but all three very close except for end caps that fit them

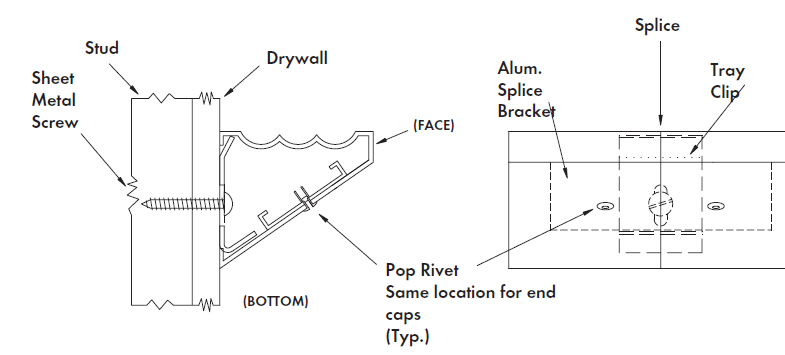

Mounting to wall and joining box trays below

bracket 2-1/8" tall p/n "Clip-snap-on Tray"

also see Snap on Trim


Snap-on trim all  are 1.75" x .31"
