Changeable Frameless Floating Magnetic Dry Erase Boards Index
Floating Frameless Design Mimics Glass
New design that is so Affordable - Available 12/15/2020
many 23.5x36 Steel panels in Stock just need to do insert and ship

Indoff    - Sold Nationwide
860-632-2026
860-632-2028 Fax
ahutton@ahutton.com


24x36 OAF option

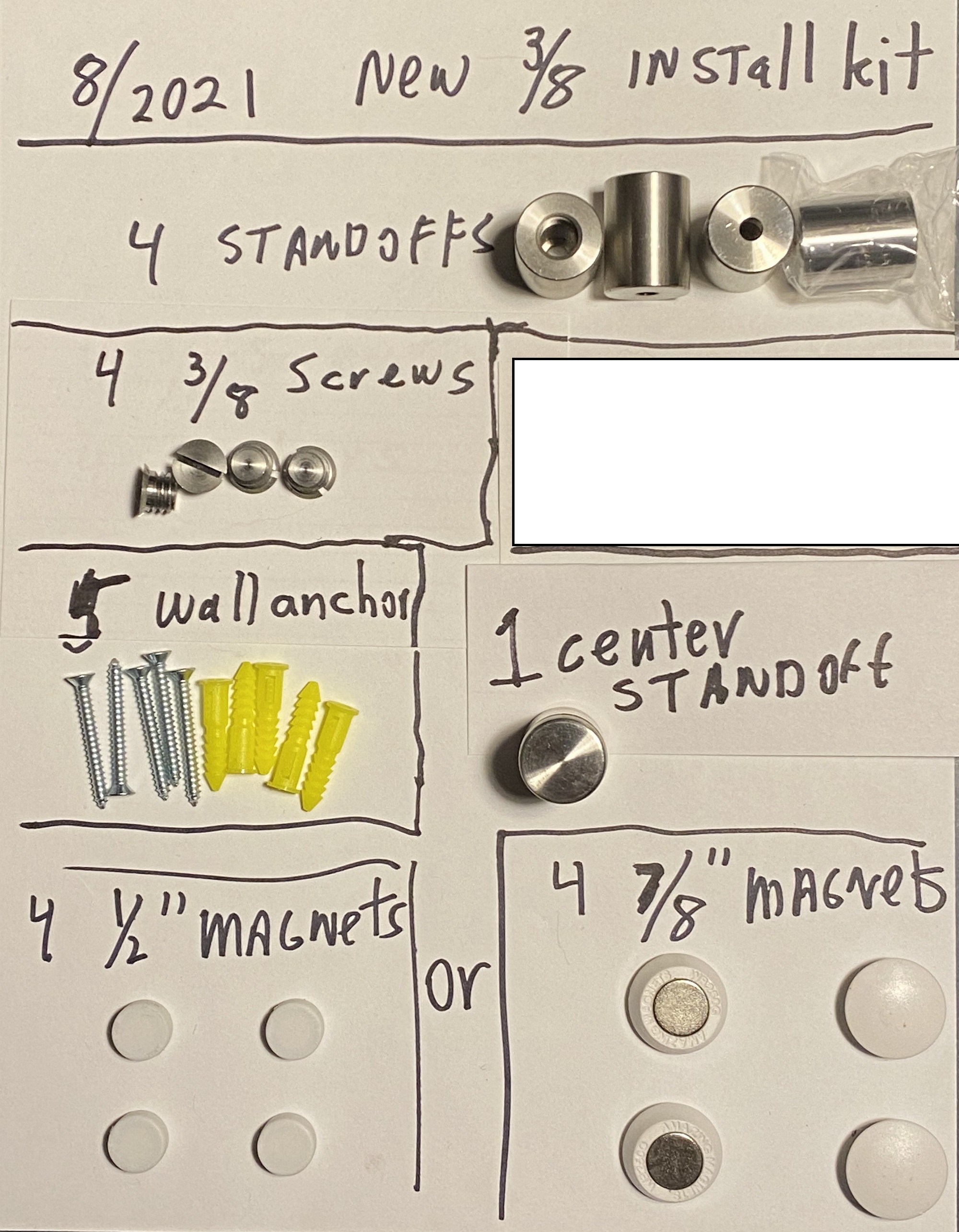

new 3/8" hardware kit

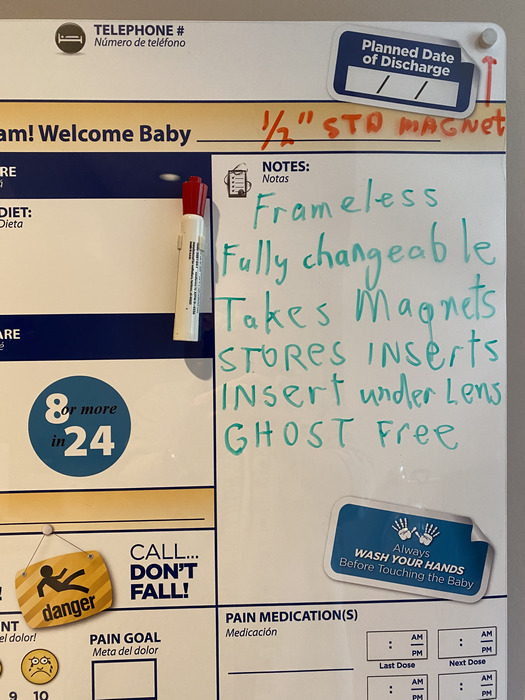

Frameless
Disinfectant Resistant
Changeable
Take Magnets
Markers Hang on board

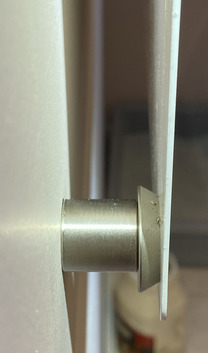

Offset from Wall
Takes Magnetic Trays
Affordable

Many Pictures

Installation of New 3/8"  of old M10

Layout of magnets-Flatheads

Lens Cleaning

Inserts Syntisol

Also see Snap Frames for
 posters and inserts

Video
Pricing 23.5x36
Pricing  18x24
One Page Summary

29x38 maybe size

Way less than Glass with a comparable frameless look that stands off the wall
**Insert can be changed in under 1 minute with 1 person and no tools**

It takes our magnetic marker rings
it takes printed magnets

it is a Floating design like Glass boards
it is Frameless
it has rounded corners
it is changeable
Insert can be double sided or you can store in layers
its Disinfectant Resistant
Magnets are what makes it work!

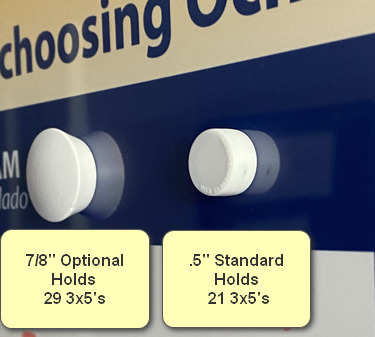

To make the board useable i.e. the lens cover stays in place while erasing we need strong magnets.  See standard magnets and optional ones at  Magnet Options

Changeable Options!

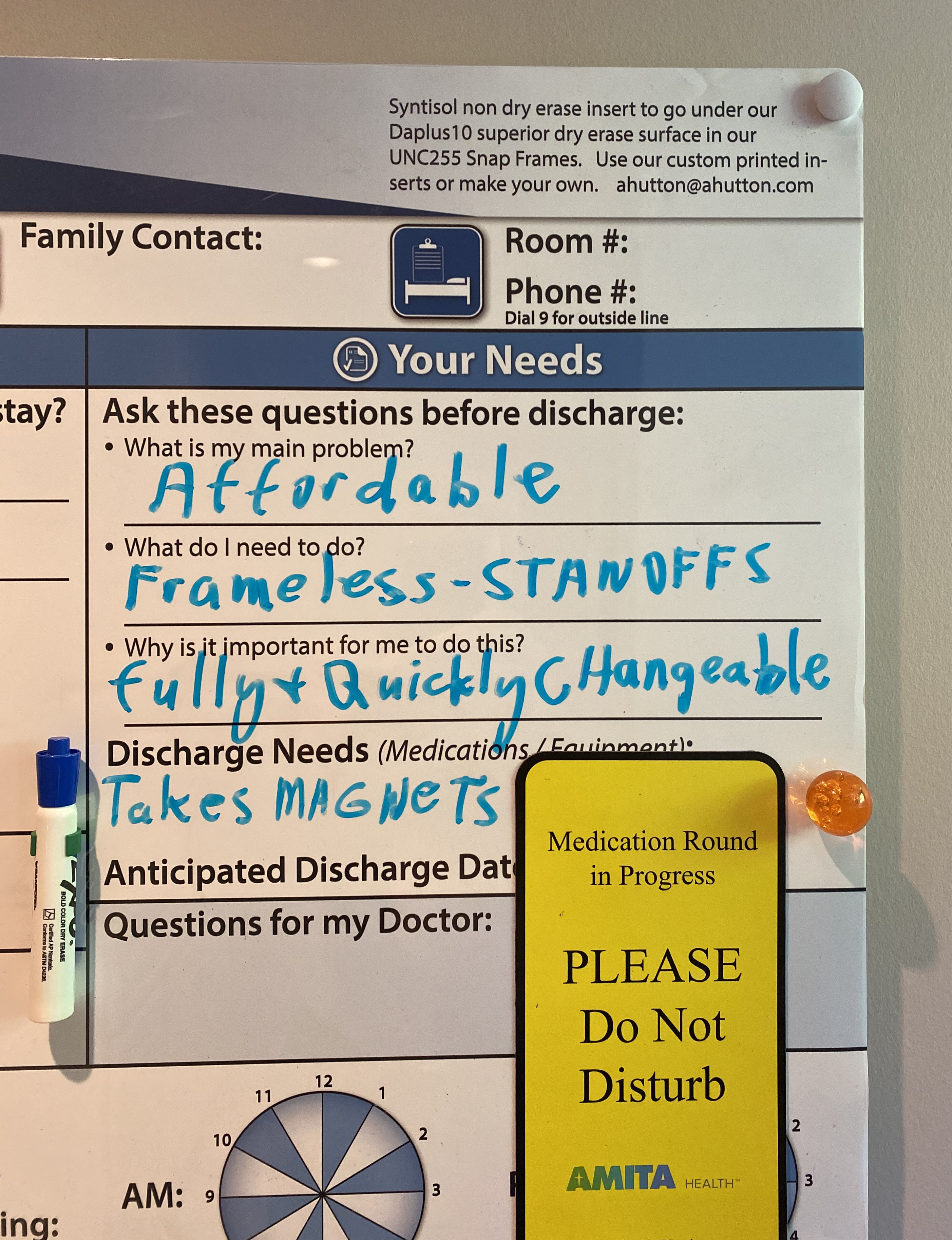

1. Single or double sided Syntisol under DaPlus10 lens Cover
   A.  You can add 2 more inserts as storage
2. Get Peel and stick cover with DaPlus2 on it so no need of lens cover
3. Get double sided insert with Daplus2 on both sided for 30 second change
4. Put on Magnet Overlay w/Daplus2 and No need for corner magnets

Overall Options
1.  Have white steel be dry erase
2.  Order bigger magnets

Steel in 3 thicknesses
23.5"x36"  size
16 gauge .060"   13.4 lbs   needs 1 center standoff  Standard
14 Gauge  .074"  16.8 lbs   will need at least one center standoff
11 Gauge .119"  27.4 lbs  no center standoff needed

Center standoff does not go thru board it is just so steel does not flex when erasing or writing



3/8 Design

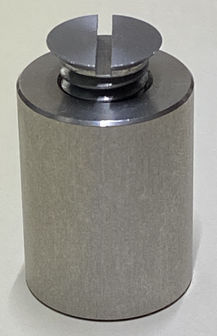

New SS standoff and New SS Magnetic Flathead
Standoff is .75" diam by 1" tall with 3/8-16 threads
Flathead OD of head is .481"
Redesign as of April 2021 will be used on all new orders
We have made a new Standoff that is solid SS with 3/8-16 threads8
The Flathead is 416 Magnetic Stainless and has a 3/8-16 thread

This design makes for a perfect thread fit and allows the diameter of the flathead to be a much smaller 1/2" diameter and allowing us to get rid of the countersunk spacer

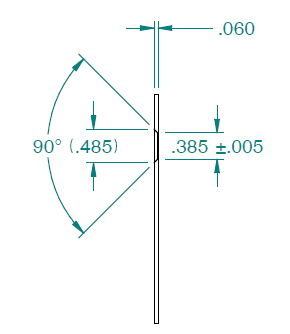

90 degree countersunk hole so flathead screw sits flush

New 3/8 Design has 3/8" Id on countersunk Hole

Older M10 Design has 3/4" Id on countersunk Hole


White Powder coated 23.5x36 sheet without overlay and lens cover
Flathead screws leave a perfectly flat surface.

Can be done ina any color but standard is white!
Can also be done in dry erase powder coat paint!

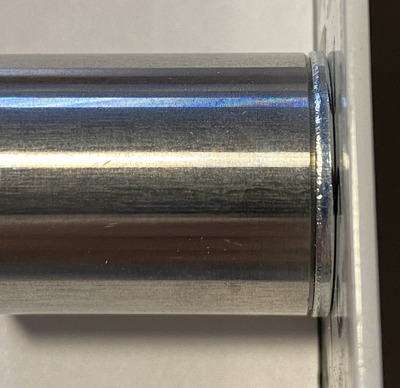

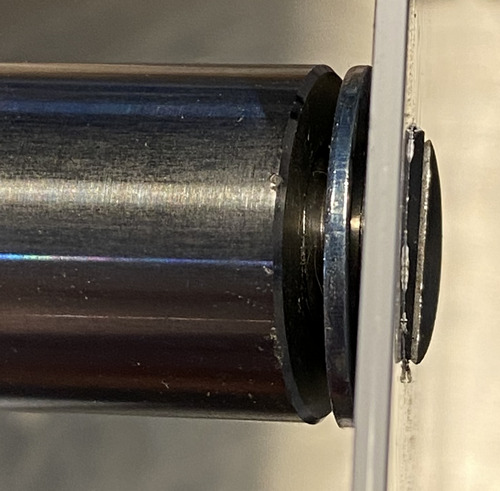

new 3/8 ID design just has Flat washer between standoff and steel

      _
new 3/8 ID design just has Flat washer between standoff and steel

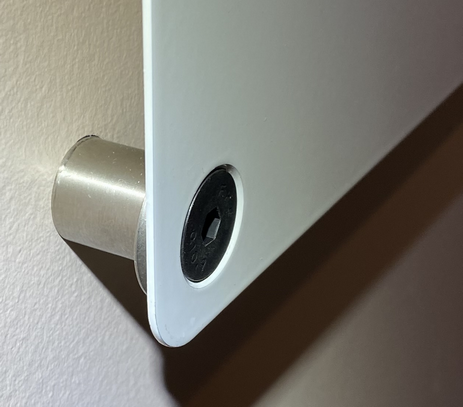

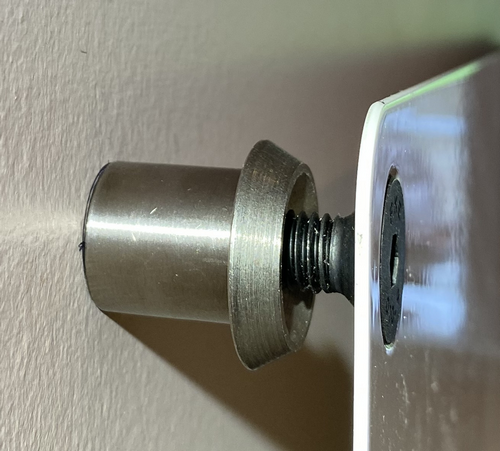

Corner view no overlay (Standoff, spacer, steel panel, flathead Screw--- OLD M10 design
if have glass that needs printing see
 Printed Overlays for Glass Boards
