L-Clip part #
TL x L x W |
$ Each |
TL
Total L
of
short
side |
LL
Frame covered |
BH
inside back
to
hole
center
LL-CL |
CL
front
to
Hole
Center |
L
Height
Overall |
Diam.
Hole |

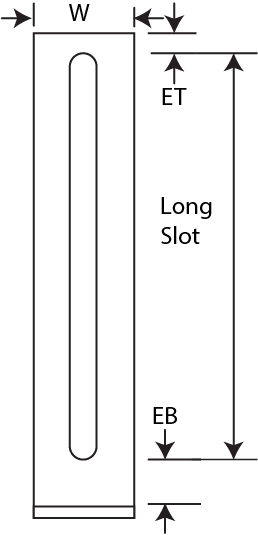

W |
ET |
EB |
Long
Slot
HxW |
wt |

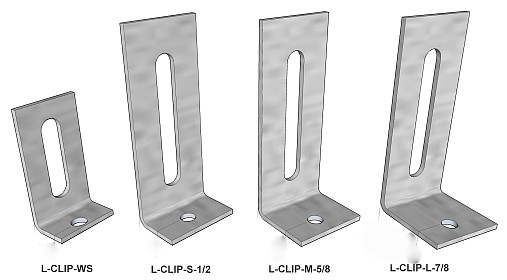

L-Clip-WS for Ohio Aluminum
also called Ohio L-bracket
Ohio index Small bracket
L-Bracket-3/8
7/16x1-5/8x3/4 |
1-24 at $1.00
25-99 at $.75
100+ at $.55 |
7/16
.438" |
3/8
.375" |
3/16
.188" |
3/16
.188" |
1-5/8"
1.625" |
5/32"
.156" |
3/4"
.750 |
11/32 |
1/16"
.063" |
1.00"
x 1/4" |
2 lbs
per
100 |
L-Clip-S-1/2
L-Bracket-1/2
5/8x2-3/8x1 |
1-24 at $1.00
25-99 at $.75
100 + at $.55 |
5/8
.625" |
9/16
.563" |
11/32
.344" |
1/4
.250" |
2-3/8"
2.375" |
3/16"
.188" |
1" |
13/32
.406" |
5/16
.313 |
1-5/8"
x
1/4" |
4 lbs
per
100 |
L-Clip-M-5/8
L-Bracket-5/8
3/4x2-3/8x1 |
No Longer
Available |
23/32
.719" |
9/16
.563" |
5/16
.313" |
1/4
.250" |
2-3/8"
2.375" |
3/16"
.188" |
1" |
13/32
.406" |
11/32
.344 |
1-5/8"
x
1/4" |
4 lbs
per
100 |
L-Clip-L-7/8
L-Bracket-7/8
15/16x2-3/8x1 |
1-24 at $1.00
25-99 at $.75
100 + at $.55 |
15/16
.938" |
7/8
.875" |
5/8
.625" |
1/4
.250" |
2-3/8"
2.375" |
3/16"
.188" |
1" |
13/32
.406" |
5/16
.313 |
1-5/8"
x
1/4" |
5 lbs
per
100 |

all the L-Clips above are steel and are 1/16" = .063" thick and are plated
to resist rust
|
| Below------- Other Clip for Trays and Trim-
Not L brackets |
|
| 439 Tray Clip |
$.50 |
|
|
|
|
|
|
|
|
Snap-on 1-3/4" H-bar Clip |
$.50 |
|
|
|
|
|
|
|
EZ hang Clip for EZ hang Frame
see
mounting |
|
|
|
|
|
|
|
|
